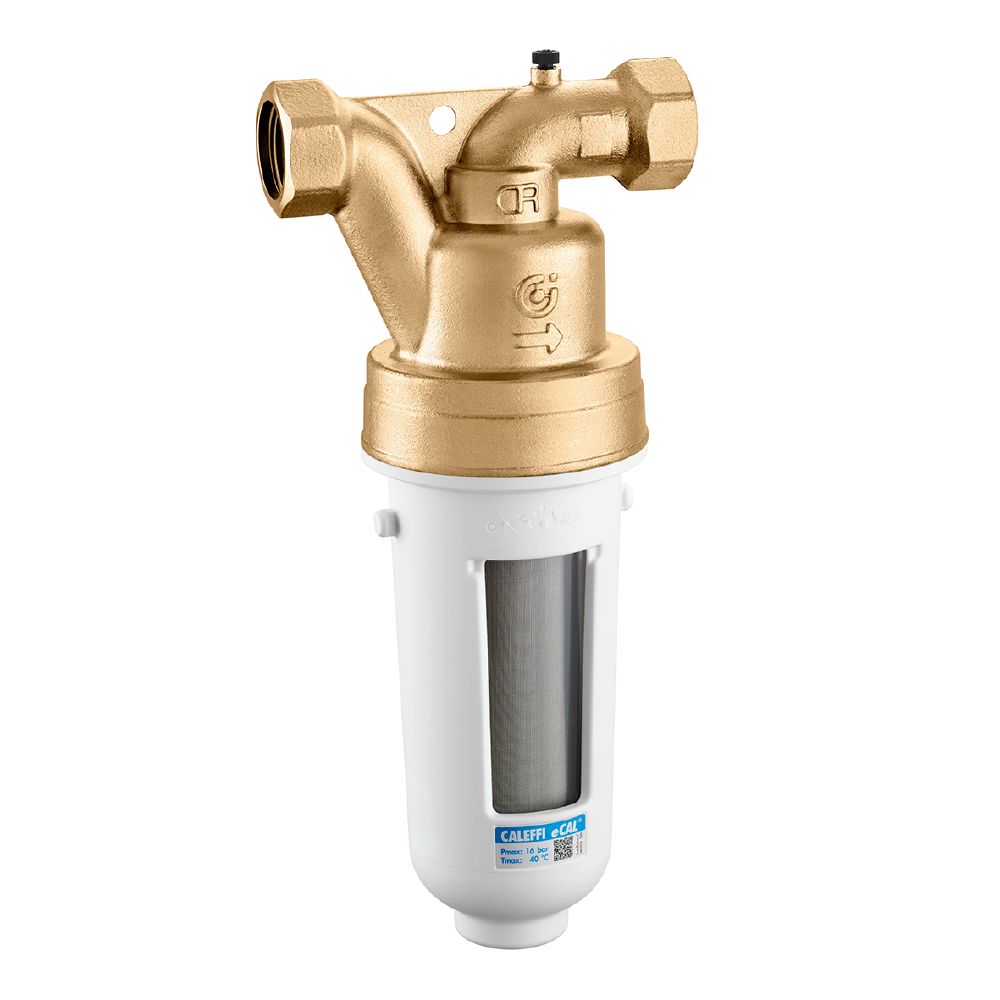

Caleffi eCAL electrolytic anti-scale device with filter and magnet.
Easy retrofit for in-line installation, comes complete with filter removal tool for servicing.
The internal elements are designed to ensure device efficiency throughout its operating lifespan, which is on average 7 years from the date of installation.
After this period, we recommend replacing the self-contained internal cartridge (code to order replacement cartridge – AS2304).
Specifications –
Material: low lead DZR brass EN 1982 CC768S
Connections: G 1″ female
Max. working pressure: 16bar
Working temp range: 5-40°C
Medium: potable water
Filter mesh size Ø: 0.05mm
Body: dezincification-resistant alloy EN 1982 CC768S
Filter: stainless steel EN 10088-2 (AISI 304)
Connections: G 1” female
Max working pressure: 16bar
Max differential pressure on cartridge: 3bar
Working temp range: 5-40°C
Kv: 5,1 m³/h
Filter mesh size Ø: 50 μm / 0.05mm
Magnetic induction of magnet: 1 T
Medium: potable water
Water hardness range: <45 °f
Water pH range: 6,5-8,5
Water Iron level: <0,5 mg/l
Conductivity: <1500 μS/cm
