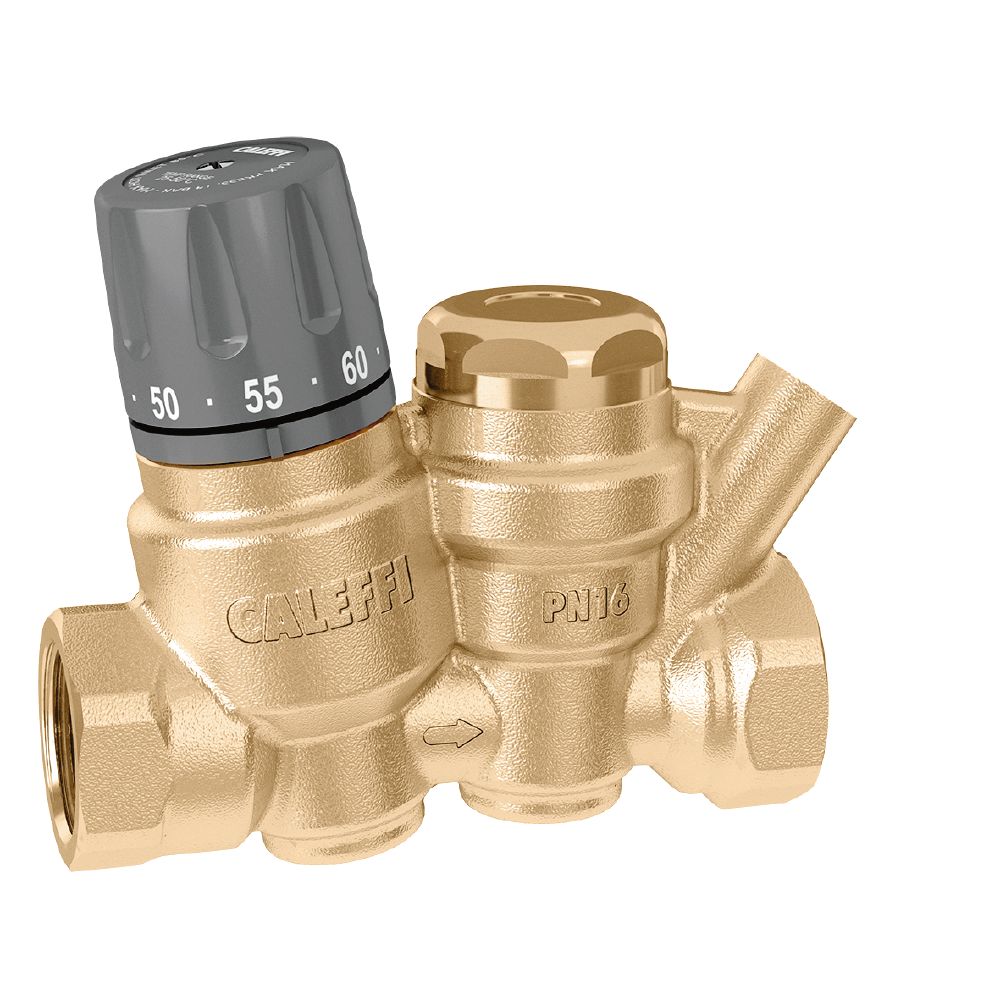

Caleffi 116 Series Thermostatic Regulating Valve 15mm
116 Series thermostatic regulating/balancing valve in 15mm.
The thermostatic regulator is used for automatic balancing of recirculation circuits in domestic hot water distribution systems, so as to ensure that all parts of the system reach the required temperature.
Fitted for automatic or controlled thermal disinfection function.
Comes with a temperature gauge for circuit temp check.
Connections: 15mm
Maximum working pressure: 1600kPa
Maximum working temperature: 90°C
Temperature range adjustable: 35-65°C
Factory setting: 52°C
Material: low lead dezincafication resistant brass alloy
Conditional guarantee:
5 years parts and labour
Medium: drinking water
Max. working pressure: 16 bar
Max. differential pressure: 1 bar
Max. inlet temperature: 90°C
Adjustment temperature range: 35–65°C
Factory setting: 52°C
Kv max (m3/h): 1.8
Kv min (m3/h): 0.120±20%
Kv (Dt=5K) (m3/h): 0.45
3/4” F (DN 20) (EN 10226-1)
Temperature gauge/probe pocket: Ø10mm
