For stock availability, enquire within
Modules WMPL4

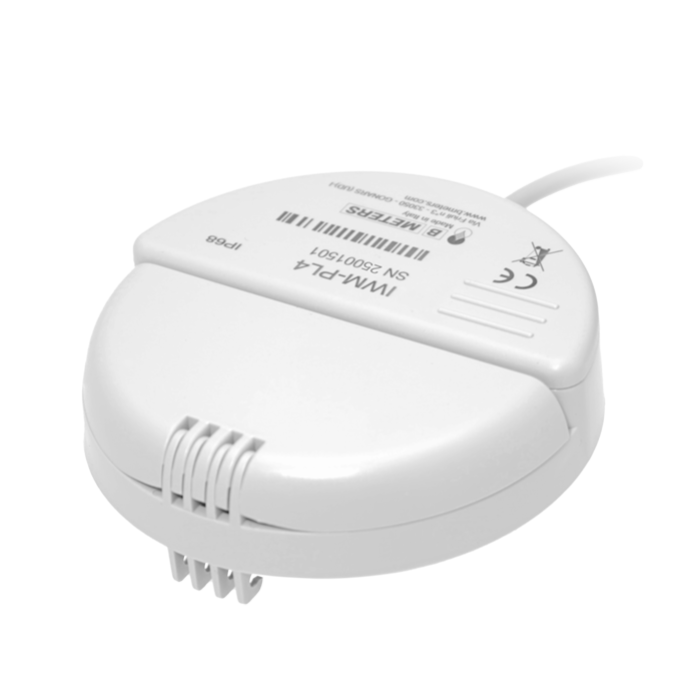

BMETERS Woltman Wired Pulse to Wired MBUS Module (65-200mm)
Product Information
Description
The wired pulse module attaches directly onto a Woltmann water meter (sizes 65-200mm) for non-magnetic pulse output.
Technical specifications:
Protocol: eletronic pulse output
Cable length: 1.5m (maximum of 10m wiring lengths)
Power Supply: Non-replaceable lithium battery
Working temperature range: from 1°C up to +55°C
Protection Degree: IP68
Alarms: Cable cut and removal, application of external magnetic field, reverse flow
WMPL4
Bmeters
Modules
65-200mm
Technical Information
Protocol: Pulse non-magnetic output
Cable length: 1.5m
Sensitivity measure: 10L (up to DN125) or 100L (from DN150)
Power Supply: Non-replaceable lithium battery (10 year max lifespan).
Working temperature range: from 1°C up to +55°C
Protection Degree: IP68
Alarms: Module removal, magnetic fraud attempt, cable cut.
