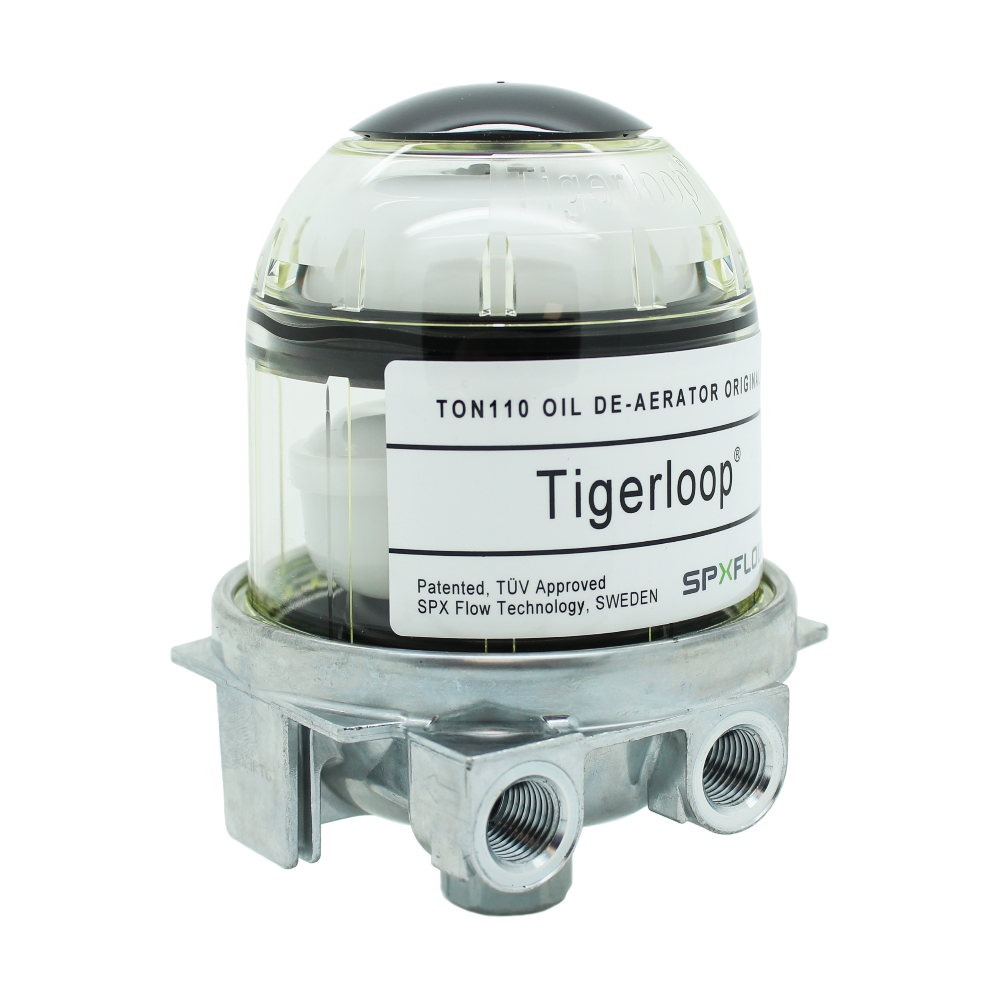

Tigerloop Fuel Dearaetor

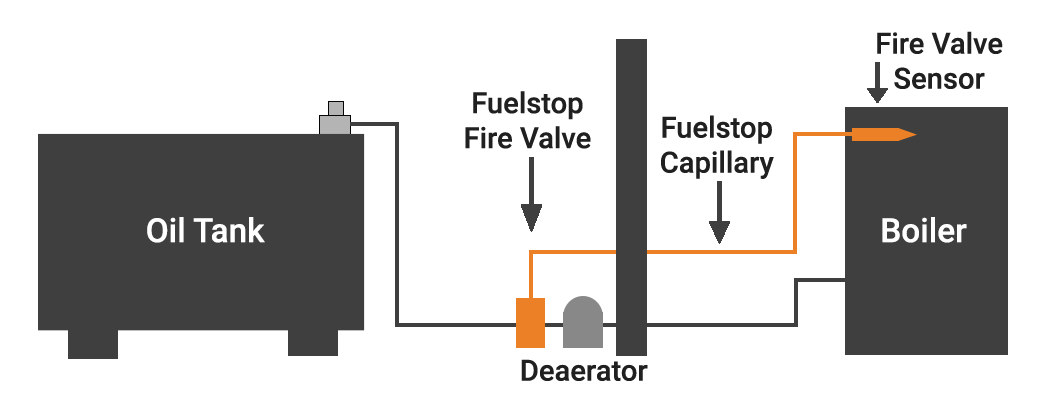

A Tigerloop makes a one-pipe system possible for all types of oil heating installations helping to ensure environmental safety, cost effectiveness, and reliability.
This is done by effectively removing all gas/air bubbles from the oil system, helping to eliminate oil pump and nozzle problems associated. Incorporating a Tigerloop into a one-pipe system enhances the oil pump’s capacity.
The friction generated within the oil pump effectively preheats the oil to room temperature, resolving problems related to cold oil, resulting in cleaner combustion, and reduced oil consumption.
Features:
– Installation completed with fewer connections
– Automatic de-aerator for oil burner
– Includes wall mounting bracket
Technical info:
Connection: 10mm compression fittings
Max nozzle capacity: 110L/h
Max return oil pumped in to the tigerloop: 120L/h
Max de-aerating capacity: 8L/h
Max flow: 230L/h
Temperature range: -10-60°C
Max/min operating pressure in the feed line: +0.5 to -0.6bar
External mounting only – prohibited for indoor installation due to its venting of potentially contaminated air, which poses risks of explosion or health hazards in enclosed areas.
Features:
- Installation completed with fewer connections
- Automatic de-aerator for oil burner
- Includes wall mounting bracket
Technical info:
Max nozzle capacity: 110L/h
Max return oil pumped in to the tigerloop: 120L/h
Max de-aerating capacity: 8L/h
Max flow: 230L/h
Temperature range: -10-60°C
Max/min operating pressure in the feed line: +0.5 to -0.6bar
External mounting only.
