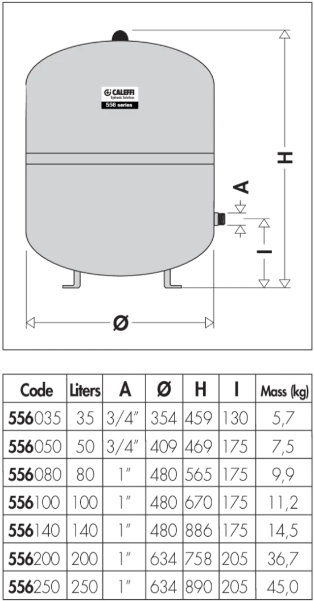

Caleffi 200L Expansion Tank Heating Only

200L expansion vessel for central heating applications

Body: Steel
Membrane: SBR
Type of membrane: Diaphragm
Pipe connection: Galvanised steel
Colour: Red
Medium: Water, glycol solutions
Max. percentage of glycol: 50%
Max. working pressure: 6 bar
Pre-charge pressure: 1.5 bar
System working temperature range: -10–120°C
Membrane working temperature range: -10–70°C
Construction: Conforms to DIN 4807-2 and EN 13831
Application: Heating only
Pipe connection: 1” M (ISO 7-1)
