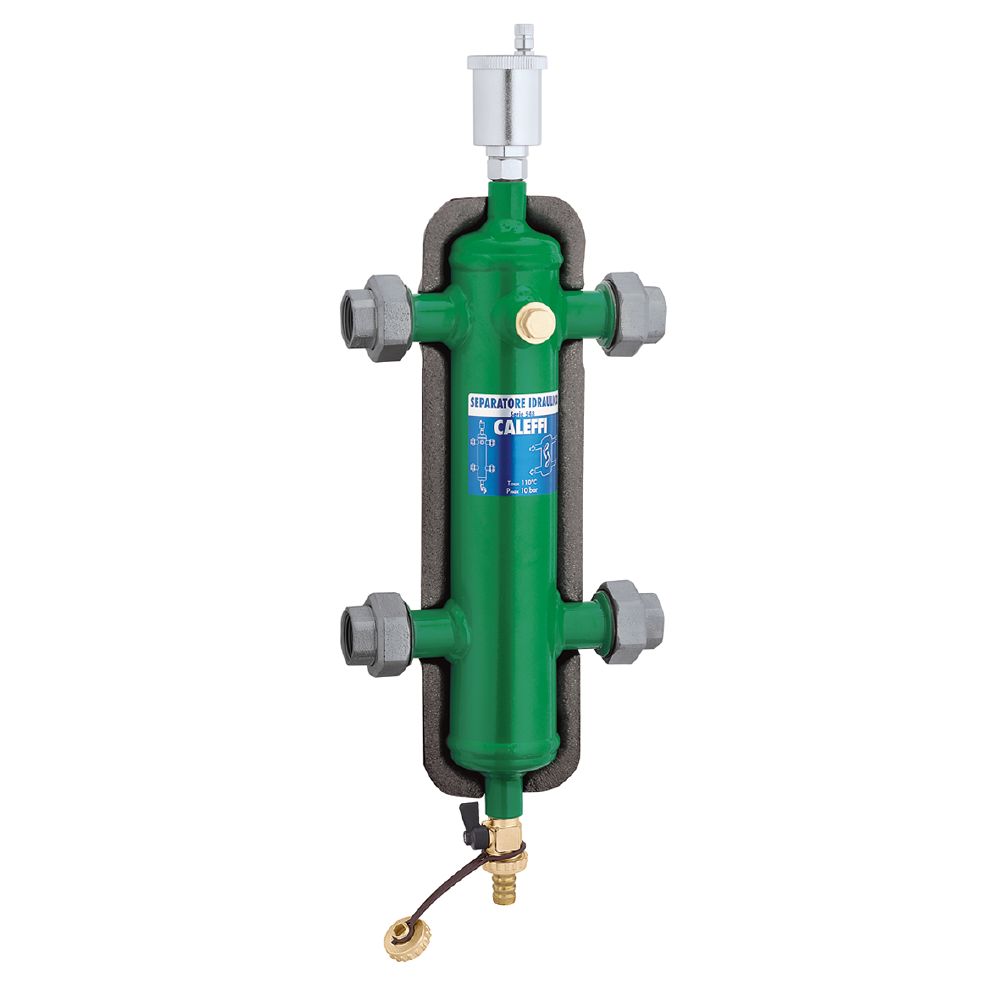

Caleffi 548 Hydraulic Seperator 32mm

Caleffi 548 series threaded multi-function hydraulic seperator with insulation in 32mm.
Designed to combine different functional components, each of them to satisfy the specific needs of heating and cooling system circuits.
It is supplied complete with hot pre-formed shell insulation to ensure perfect thermal insulation when used with both hot and chilled water.

The device is designed to carry out the following functions:
– Hydraulic seperation
– Automatic air venting (AAV)
– Deaeration
– Dirt seperation
– Removal of magnetic particles

Technical Specs
Material (Seperator body): Epoxy resin coated steel
Connections (Seperator): 1 1/4″ female with unions
Material (AAV body): chrome plated brass EN 12165 CW617N
Connections (AAV): 1/2″ male
Max. working pressure: 10 bar
Working temp range: 0-100°C
Max. recommended flow rate: 4 m³/h
