Hydraulic Separators HS548062
Search
Close
What are you looking for?

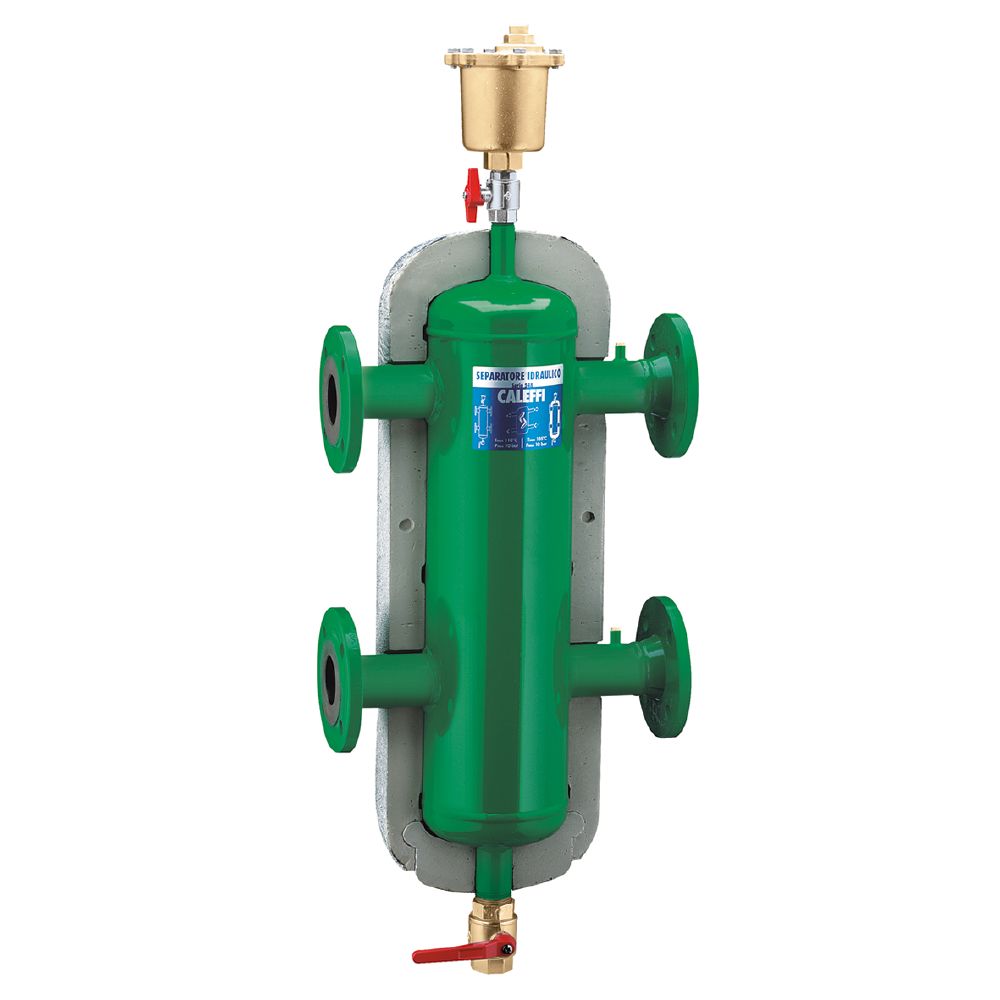

Caleffi 548 series flanged multi-function hydraulic seperator with insulation in 65mm.
Designed to combine different functional components, each of them to satisfy the specific needs of heating and cooling system circuits.
It is supplied complete with hot pre-formed shell insulation to ensure perfect thermal insulation when used with both hot and chilled water.
The device is designed to carry out the following functions:
– Hydraulic seperation
– Automatic air venting (AAV)
– Deaeration
– Dirt seperation
– Removal of magnetic particles
Technical Specs
Material (Seperator body): Epoxy resin coated steel
Connections (Seperator): 65mm PN16
Material (AAV body): stainless steel
Material (AAV hydraulic seals): brass EN 12165 CW617
Connections (AAV): 3/4″ female
Connections (drain valve): 1 1/4″ female
Max. working pressure: 10 bar
Working temp range: 0-105°C
Max. recommended flow rate: 18 m³/h
Material (Seperator body): Epoxy resin coated steel
Material (AAV body): stainless steel
Material (AAV hydraulic seals): brass EN 12165 CW617
Material (insulation cover): embossed unfinished aluminium 0.7mm
Material (insulation inner): rigid closed cell expanded polyurethane foam
Insulation thickness: 60mm
Connections (seperator): 65mm PN16
Connections (AAV): 3/4" female
Connections (drain valve): 1 1/4" female
Max. working pressure: 10 bar
Working temp range: 0-105°C
Max. recommended flow rate: 18 m³/h
Medium: water and non-hazardous glycol solutions excluded from the guidelines of directive 67/548/EC
Max. glycol percentage: 50%
Insulation thermal conductivity: 0.023 W/(m·K)
