Expansion Vessels EV556080
Caleffi 80L Expansion Tank Heating Only
Product Information
Description

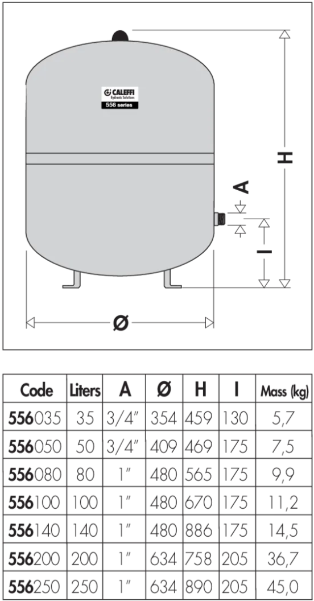

80L expansion vessel for central heating applications
EV556080
Caleffi
Non Potable
Expansion Vessels
Downloads
Technical Information
80L expansion vessel for central heating applications
Body: steel steel steel
Membrane: SBR
Type of membrane: diaphragm
Pipe connection: galvanised steel
Colour: red
Medium: water, glycol solutions
Max. percentage of glycol: 50%
Max. working pressure: 6 bar
Pre-charge pressure: 1,5 bar
System working temperature range: -10–120°C
Membrane working temperature range: -10–70°C
Construction: conforms to DIN 4807-2 and EN 13831
Application: heating
Pipe connection: 1” M (ISO 7-1)
