The Ritter Air ducted fan coil units are a compact design, perfect for installation in small spaces such as kitchens and bathrooms.
Comes complete with:
– DC brushless motor which offers high efficiency and energy savings
– Tangential activators with aluminium fins, ball bearings and resin-coated EPDM vibration damping
– Stainless steel air filter
– Condensation tray with drain
– Copper-aluminum 2 pipe hydrophilic coated heat exchanger
– Single outlet
Specs:
Power Supply: 220V
Inlet/Outlet Connections: 20mm
dB(A) Range: 23dB(A) to 34dB(A)
Drain Pipe Size: ⌀26mm

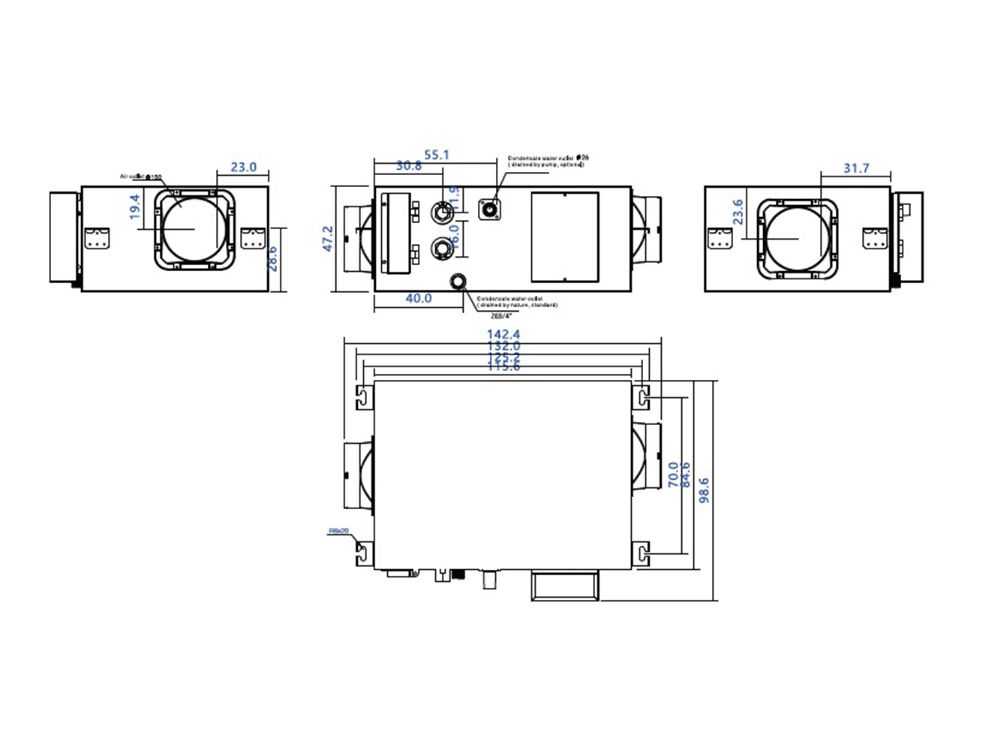

Size (mm): 570 L x 415 W x 200 H
Weight: 16.5kg
Fan coil duct kit available for purchase separately – FCRD1DK
- Tangential activators with aluminium fins, ball bearings and resin-coated EPDM vibration damping
- Stainless steel air filter
- Condensation tray with drain
- Copper-aluminum 2 pipe hydrophilic coated heat exchanger
- 3/4" Connection
- Sturdy casing manufactured from electro galvanised steel
Heating capacity: 1.2kW to 2.9kW @ 45°C
Cooling capacity: 1.3kW to 1.8kW @ 7°C
Noise: 23dB(A) to 34dB(A)
Air flow: 100m3/h to 300m3/h
Speed control: 0-10v
Power consumption: 50W
