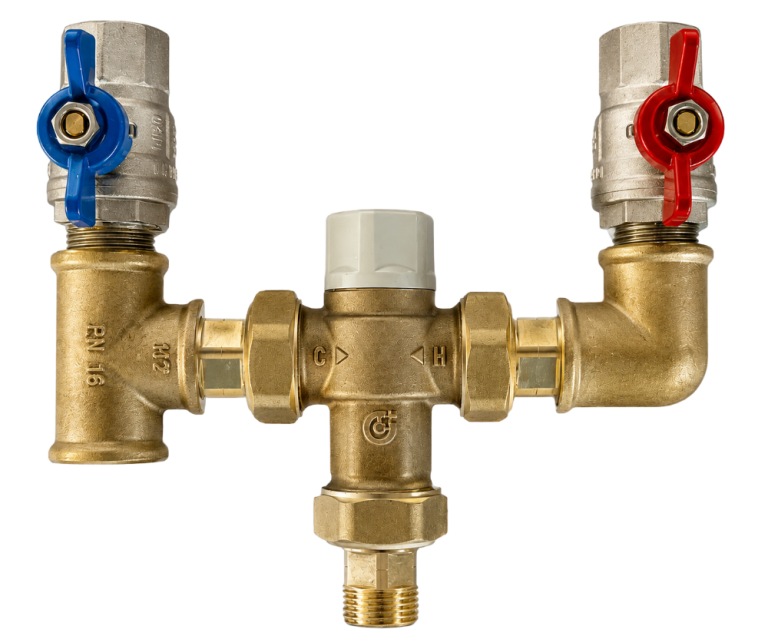

Caleffi 5213 TV with Isolation Valves 25mm

Caleffi 5213 series anti-scald tempering valve with 25mm connections, isolation ball valves, and non-return valves on both hot and cold lines in low lead DZR brass.
Union connections with o-ring seal.
Mulit point-of-use tempering valve.

Connection: 25mm
Temp adjustment range: 20-50ºC
Temp control: +/- 3ºC
Max operating temp: 85ºC
Operating pressure range: 20 – 500kPa
Max. inlet pressure differential: 2:1
Kv: 4.2 m3/h
Max. static working pressure: 1400kPa
Min. flow rate for stable operation: 6L/min
Material: low lead DZR Brass
Min. operating failsafe temp differential: 10ºC
Approval: AS4032.2

Conditional guarantee: 5 years parts and labour
