Pump Units PUSPC32SS-HE

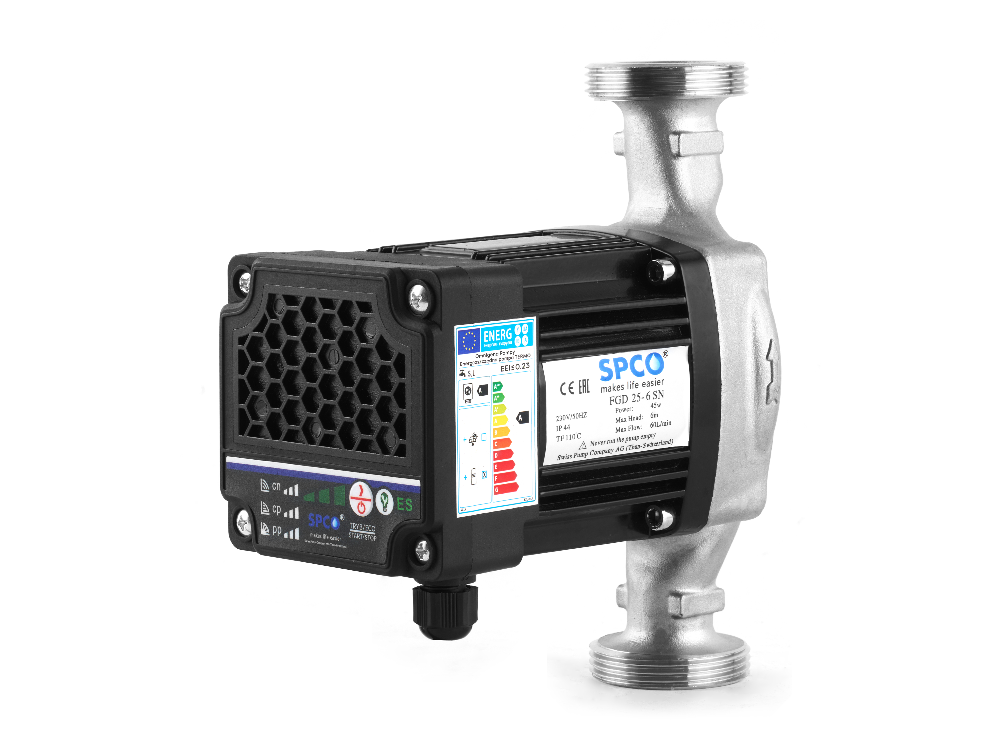

Swiss Pump Co. 32mm High Efficiency Stainless Circulating Pump
Product Information
Description
Swiss Pump Company high effiiciency circulating pump
Stainless steel body with 32mm union connections
Equipped with Self Adapting Mode
Low noise
Over-voltage and over-current protection
Quick release power connections
PUSPC32SS-HE
Swiss Pump Co.
Stainless Steel
Pump Units
Technical Information
Connection: 32mm female unions
Body Construction: Stainless steel
Maximum head: 8mtr
Maximum flow: 3.5m³/h
Power supply voltage: 230V 50/60Hz, PE
Motor protection: No external protection required
IP class: IP44
Insulation class: H
(RH) Humidity:Max. 95%
System pressure: 10bar maximum
Compliance
Environment temperature: 0 - 40°C
Temperature class: TF110
Liquid temperature: -30 - 110°C(Glycol up to 50%)
